FOR HOT WATER SYSTEM !
UP TO 80℃ !

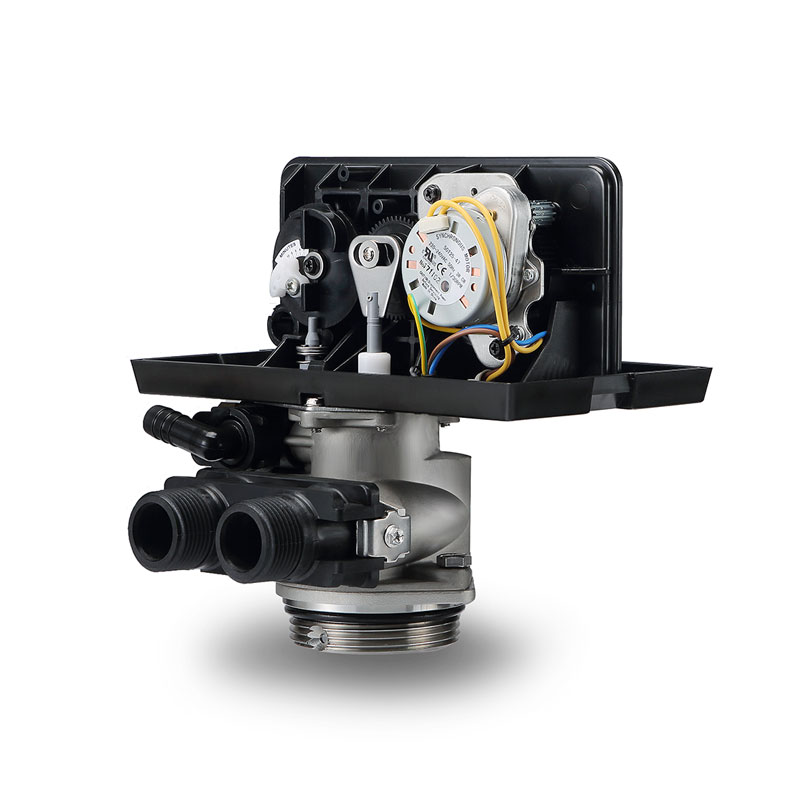

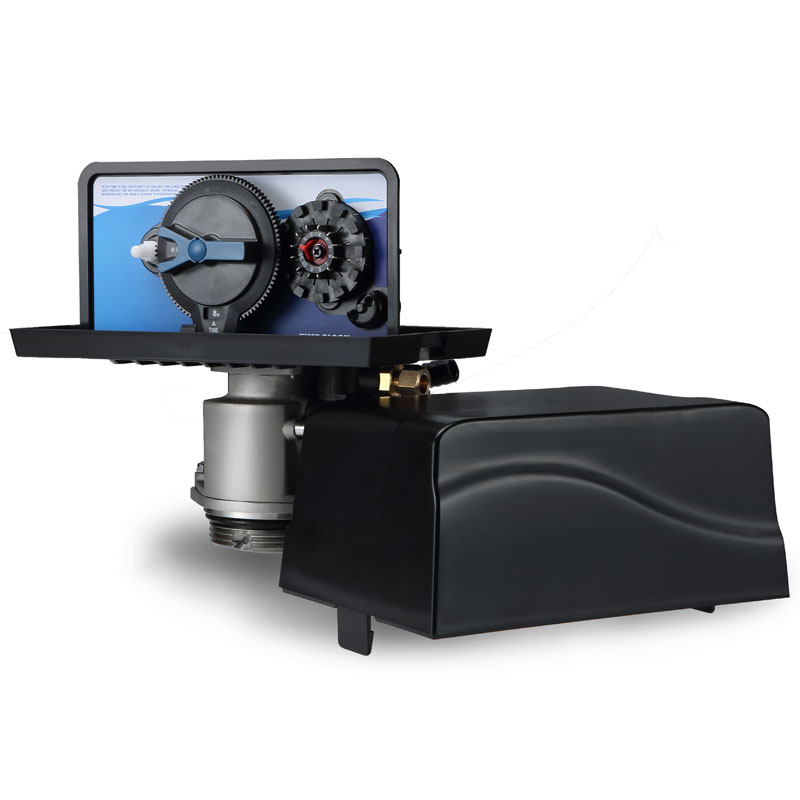

Model Description
| MZ7-ST / Water Softening Time Clock |
| MZ7-FT / Water Filtration Time Clock |
Specification
| Inlet / Outlet | 1" or 3/4" |
| Base | 2-1/2" |
| Center tube | 1.05" O.D. |
| Drain port | 1/2" |
| Brine Port | 3/8" |
| Cycles | Up to 7 |
| Valve Material | PPO |
| Regeneration | Downflow |
| Service@15 psi | 20 gpm |
| Backwash@25 psi | 7 gpm |
Feature
ROHS and CE certificate;
For hot water system, up to 80 ℃
Simple mechanical design;
Wide ranges of injectors, B.L.F.C. and D.L.F.C.;
Stainless steel valve body;
Economical-small annual power consumption,keeps the time and activates the piston valve mechanics with a single motor;
Designed with double backwash;
Straight drainage or elbow drain connector option.
